EXCLUSIVE LINE 540

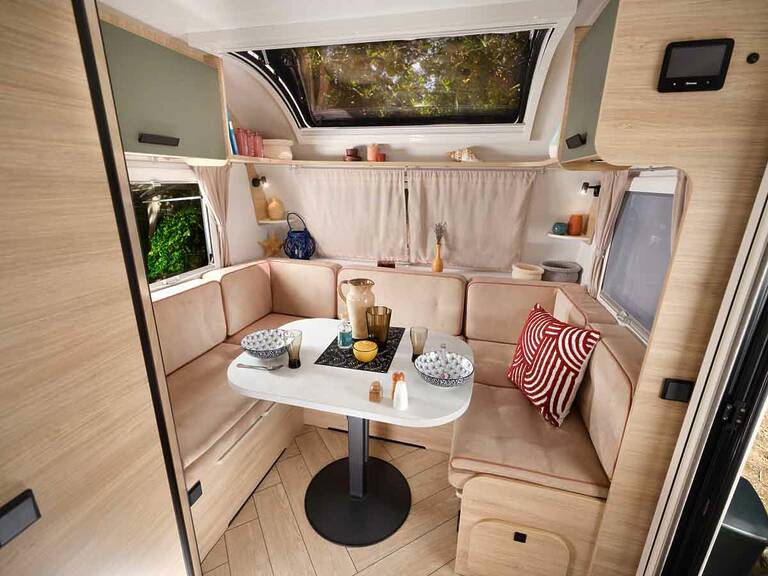

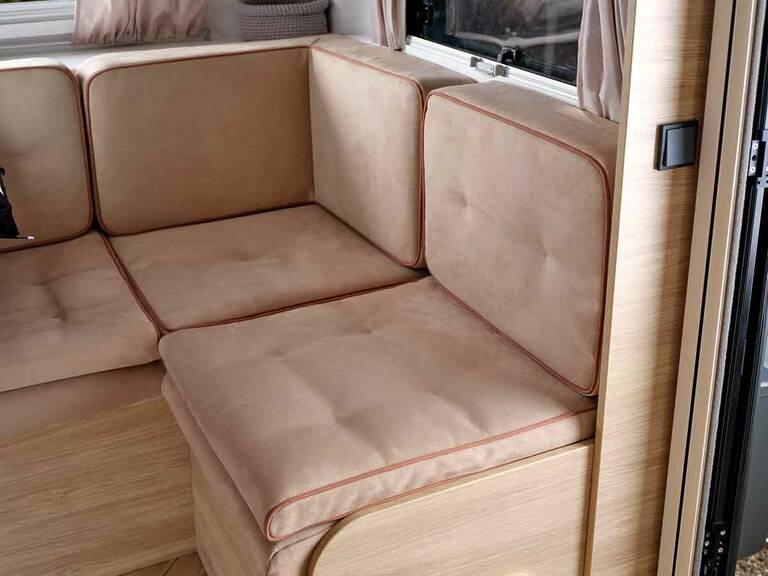

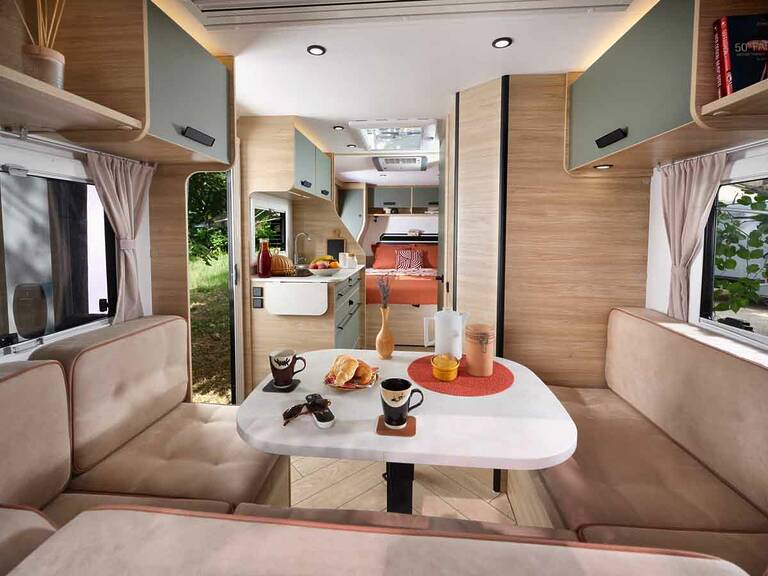

An XXL rear bed, a true separate shower, a convertible U-shaped lounge, and a well-equipped kitchen: the 540 is a high-end caravan designed for those who want to travel often, for long periods, and in optimal comfort. With its 15 cm mattress, XL fridge, and numerous storage spaces, everything is designed to travel like at home — or better.

4

1500 kg

7.41m x 2.3m

Compare

Find a distributor
near you

Configure
your Caravelair

Download
catalog 2025

EXCLUSIVE LINE 540 in detail

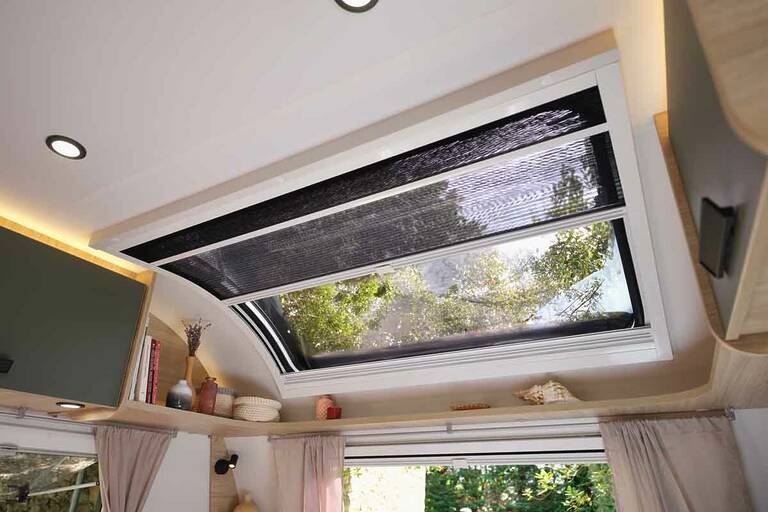

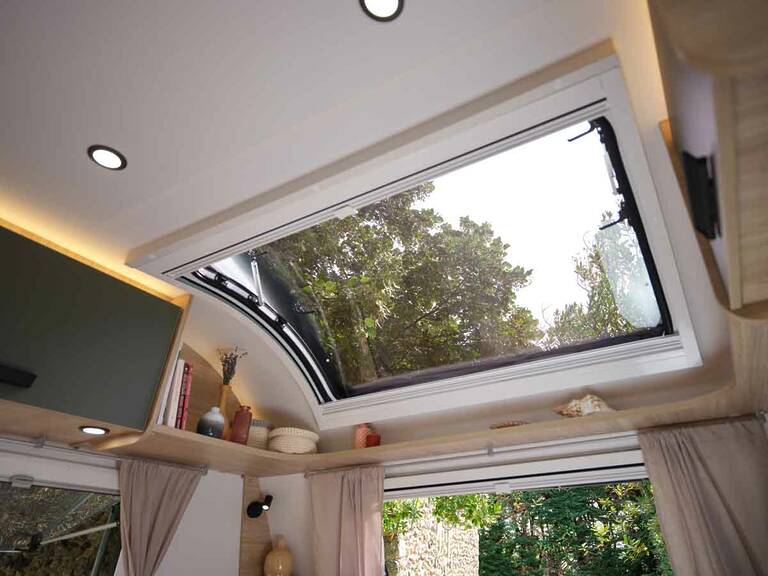

Skyview
Awning light
XL entrance door
AKS 3004 anti-sway system
Alloy wheels
Panoramic roof vent
Gray Matter polyester side walls
Front window
Gas exterior socket

Overall length : 7.41
External body length : 6.14
Internal length : 5.4
Overall height : 2.58
Internal height : 1.95
Overall width : 2.3
Internal width : 2.14
Spare wheel dimensions : 185R14C

Empty weight : 1290
Mass in running order +/-5% : 1307
Max authorized weight : 1500
Administrative payload modification : 1500/1800
Awning length +/-5% : 10.08

Heater / Boiler TRUMA COMBI 4 (GAS)
Blown air (12V)

Fresh water tank 50L
Wastewater consolidation
Fixed waste watertank 30L
Sockets 230V : 4

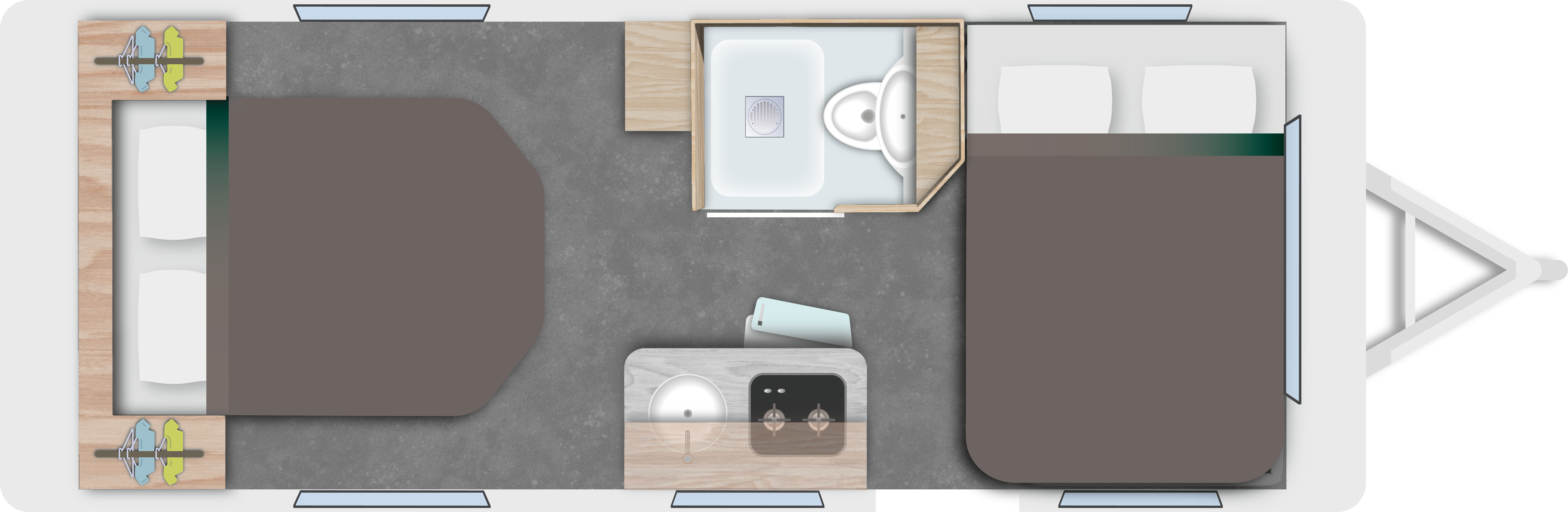

Dimensions front bed (cm) : 143/114x210

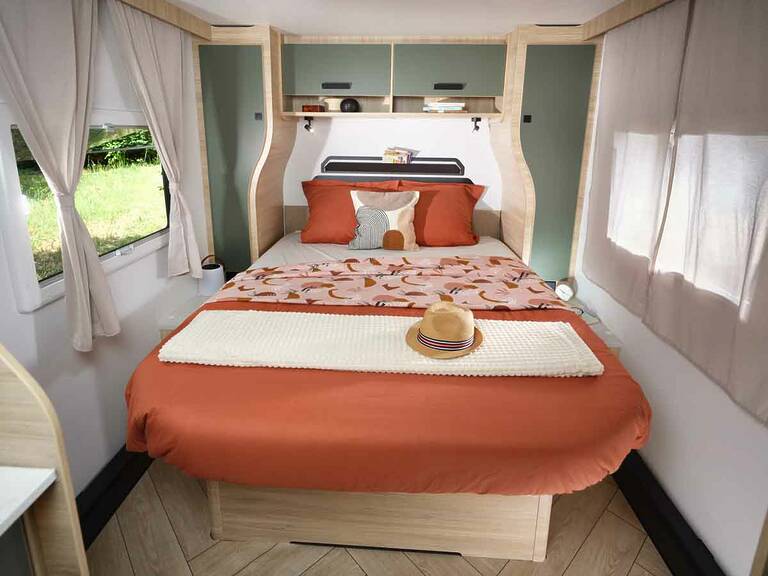

Dimensions rear bed (cm) : 150x198
Bed gas strut
Comfort matresse (15 cm) in parents bed

Compressor Fridge XL FREEZE : 150L
Stainless steel sink
2 Stainless steel burners

Electric cassette toilet

Heater / Boiler TRUMA COMBI 4 (GAS)
Blown air (12V)
Fresh water tank 50L and Fixed waste watertank 30L
Wastewater consolidation

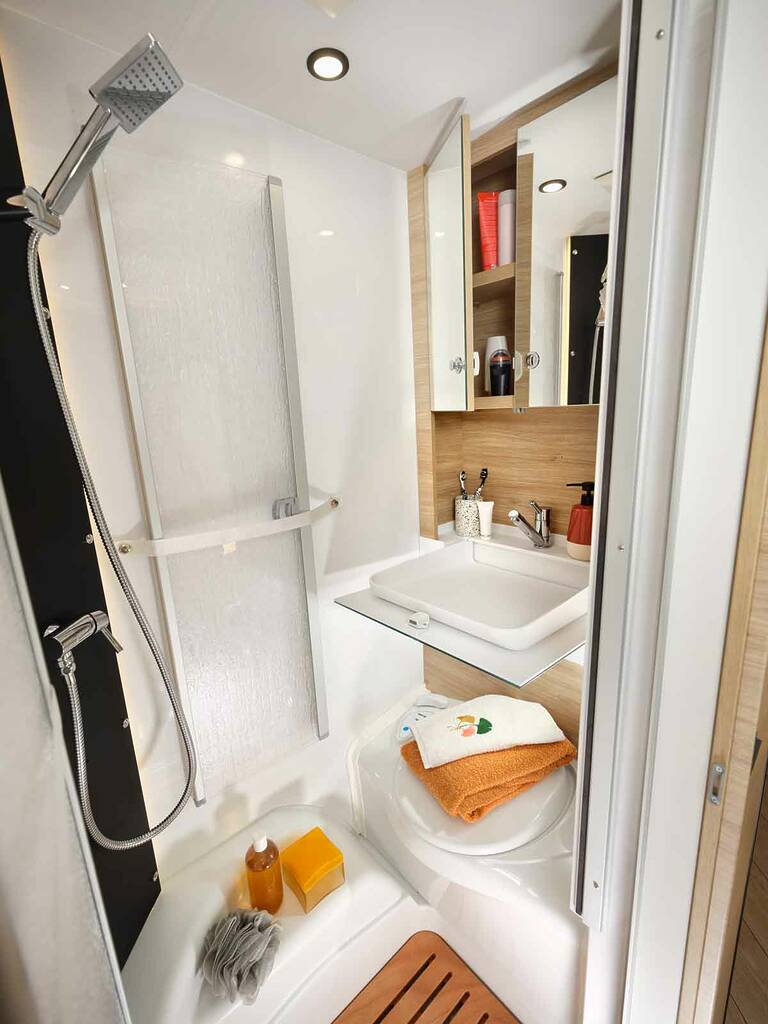

Separated shower cabin
Bathroom rooflight (40x40cm)
Shower tray
Wooden shower duck board
Longer corner steadies
Heavy duty corner steadies (x4)
Steel spare wheel (front trunk)
Shock-absorbers
Stabiliser coupling AKS 3004
Wheel trims
Luggage door (100x40 cm)
Exclusive IRP Technology
Polyester side walls : Grises
XL Entrance door (61 cm)
GRP roof with canvas roof extension
Double-paned opening window
Mosquito-net entrance door
Battery compartment with pre-installation
Front window
Awning-rail
LED Awning light
Gas locker and second bottle strap
Combined blinds & fly nets

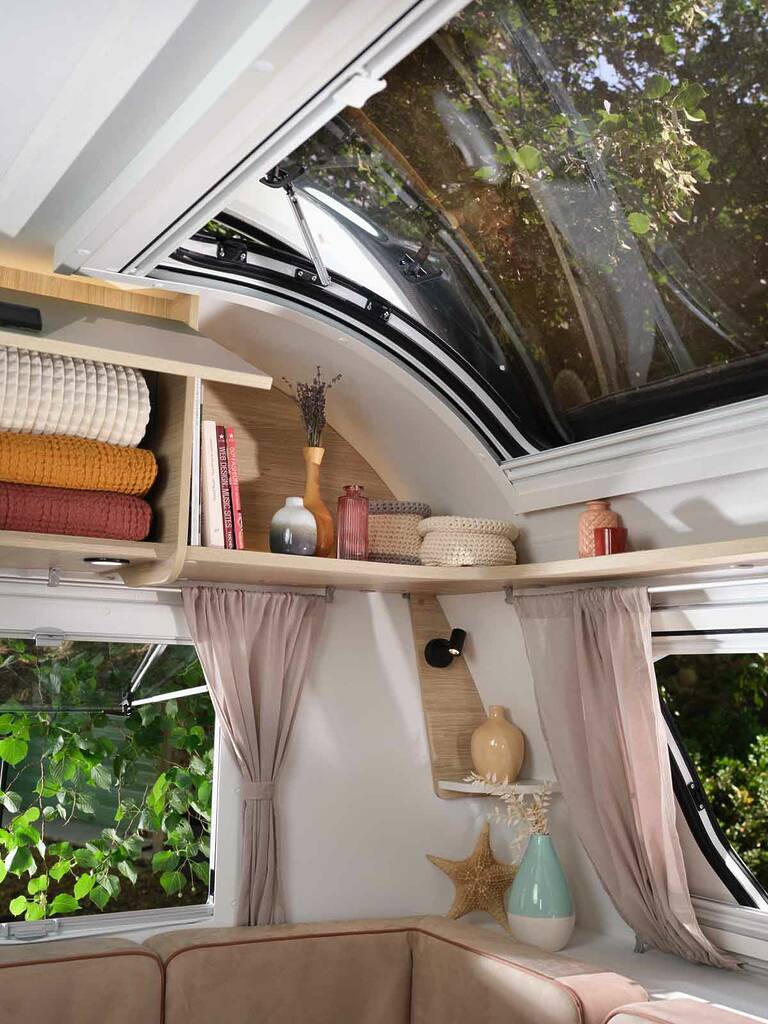

Skylight (70x50 cm)
Skyview

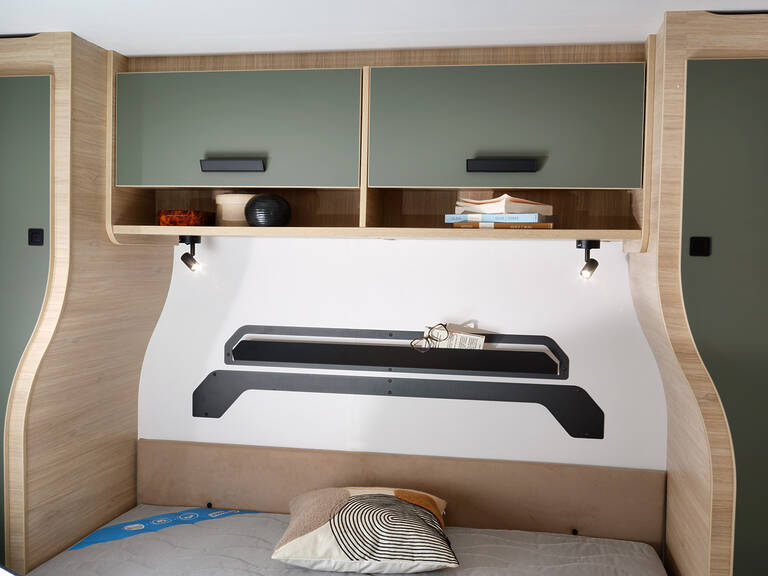

LED spotlights for reading with USB
Pre equipment Air-conditioning
Pre equipment TV : SAT and 230V sockets
Sockets 230V and Sockets USB

Anti-snaking system ATC (factory fitted)
Air-conditioning

All our models

EXCLUSIVE LINE 475

A top-of-the-range caravan with a bed along the sidewall, next to the bathroom

4

1300 kg

6.81m x 2.3m

Details

Compare

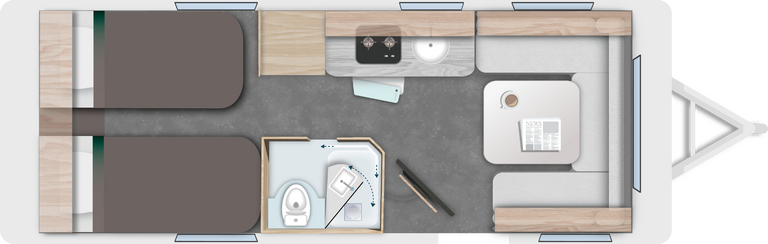

EXCLUSIVE LINE 542
