Technical characteristics
-
WEIGHTS & DIMENSIONS
-
Berths : 2
-
Overall length (m) : 5.2
-
Longueur extérieure carrosserie : 4.1
-
Longueur intérieure : 3.5
-
Overall height (m) / Internal height (m) : 2,58 /1,95
-
Overall width (m) : 2.1
-
Largeur intérieure : 1.95
-
Empty weight (m) : 740
-
Mass in running order (kg) +/-5% : 767 / 817*
-
Minimaal verplicht laadvermogen : 51
-
Rijklaar + Mini laadvermogen : #VALUE!
-
Max authorized weight (kg) : 1000 / 1100*
-
Administrative payload increase (kg.) : 850/1300
-
Technical payload increase (kg.) : N/A
-
Développé auvent +/-5% : 7.97
-
Spare wheel dimensions : 185/70 R14
-
CHASSIS
-
GRP Roof, Front, Back & Under-floor
-
Exclusive XPS insulation
-
Opening windows : 3
-
Awning light
-
3rd brake light
-
Bike stand preparation rear
-
EQUIPMENT
-
TRUMATIC 3004 Gas heater
-
Combined blinds & fly nets
-
Leisure Air-conditioning preparation
-
LED lights in ceiling
-

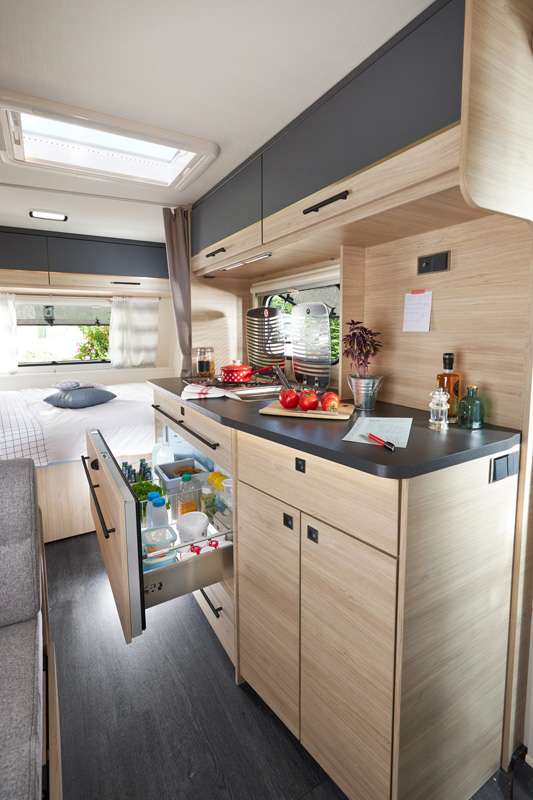

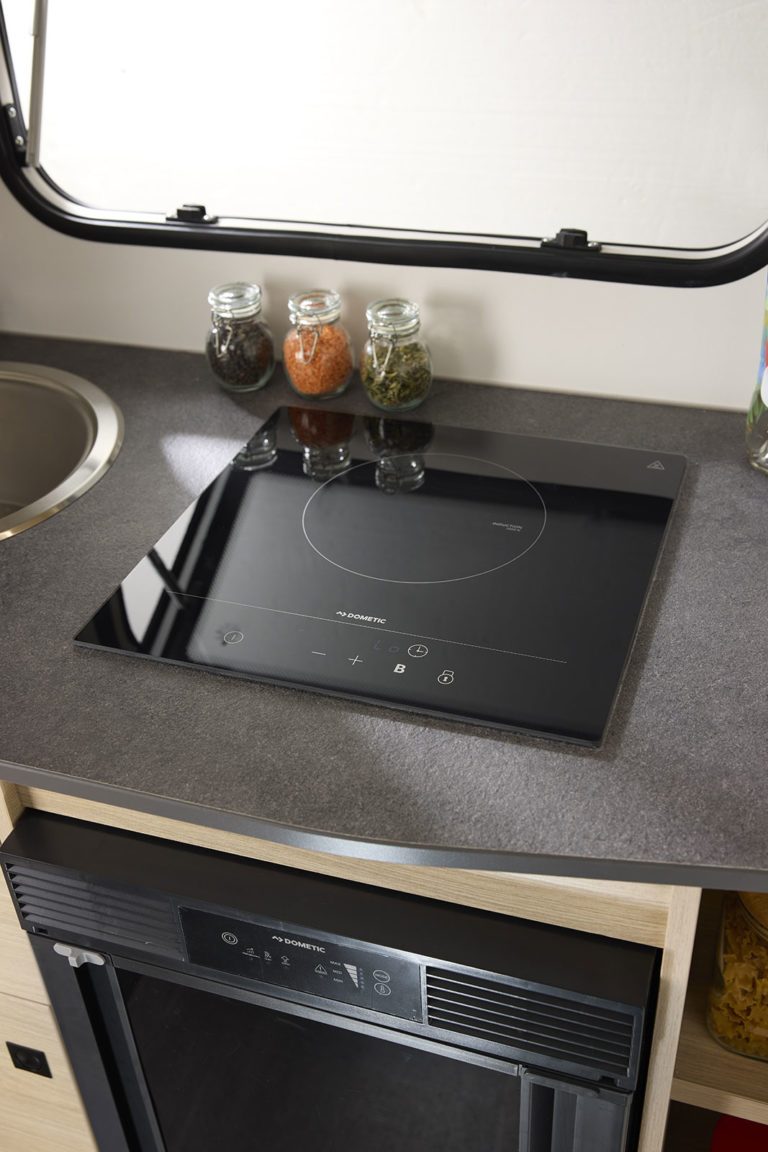

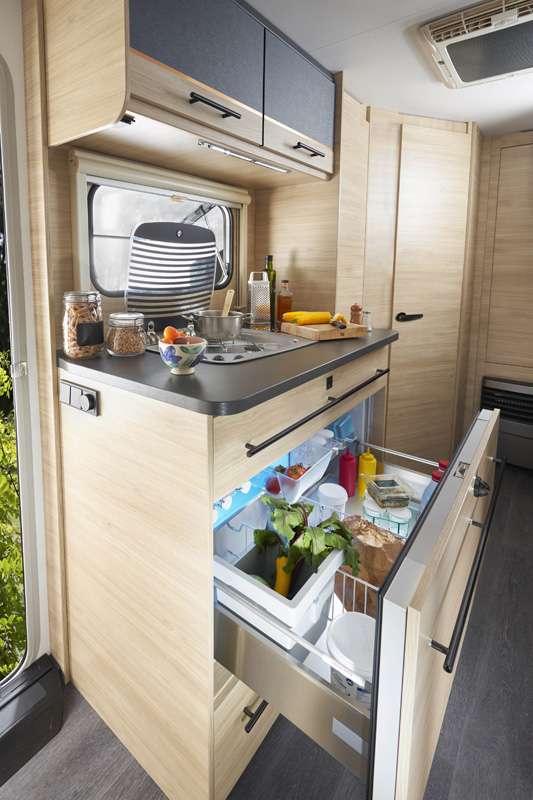

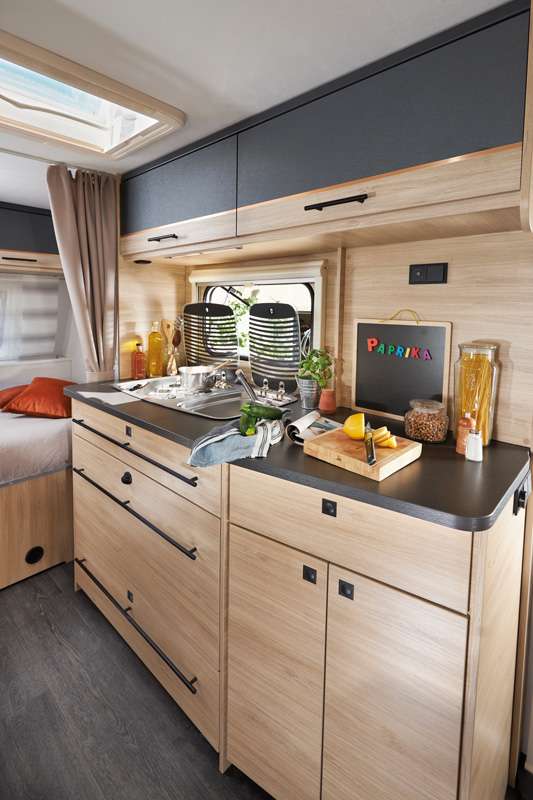

KITCHEN
-
85L fridge (Gas/12V/230V)
-

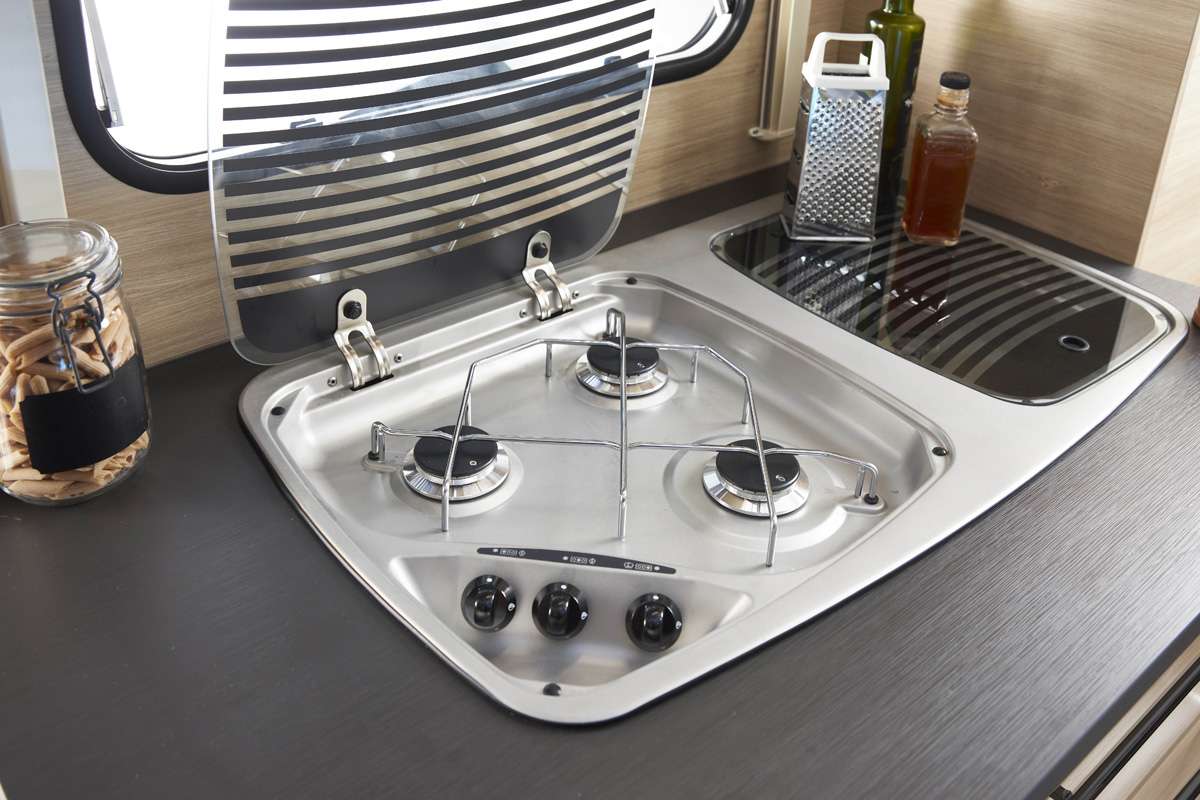

Stainless steel sink & 3 burners
-
Fresh water tank 25L (wheeled)
-
LED lights
-

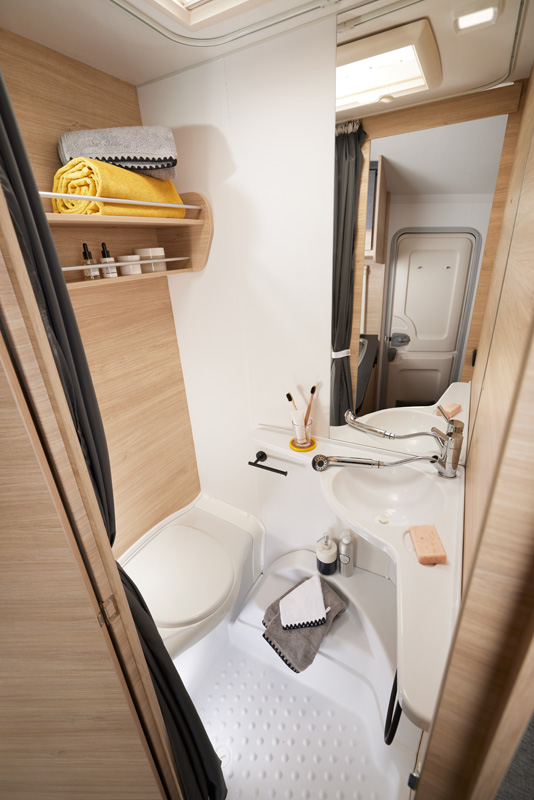

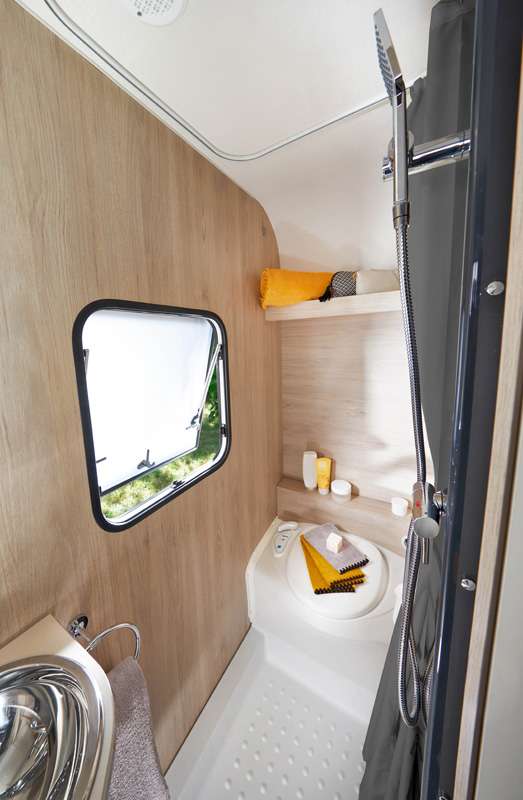

BATHROOM
-
Shower tray
-
Thetford cassette toilet :
(Electr.
-

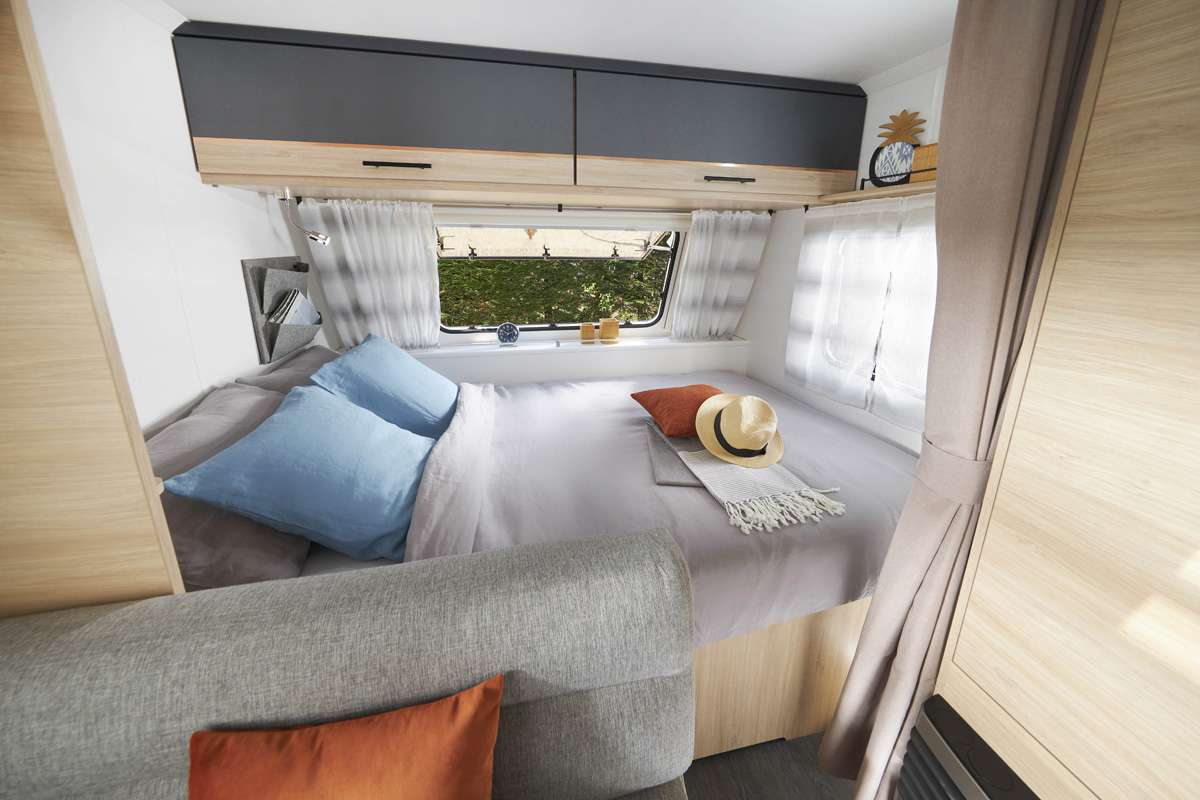

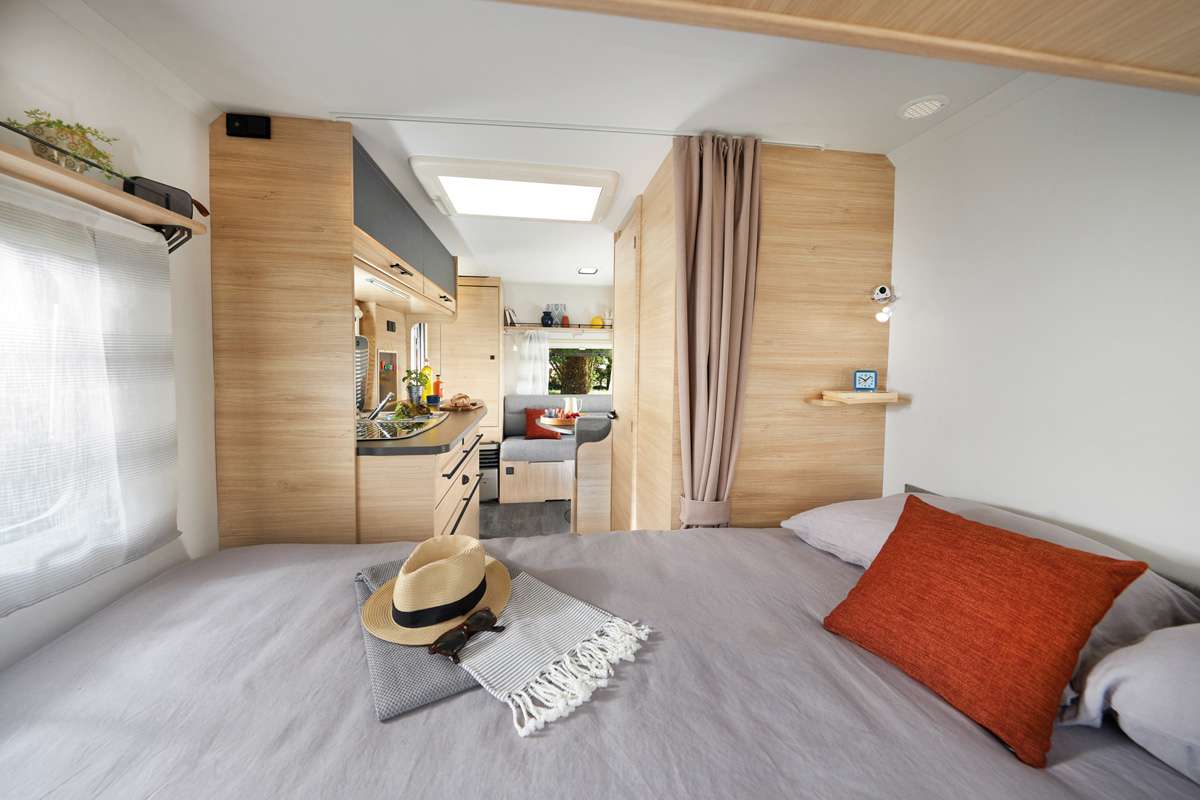

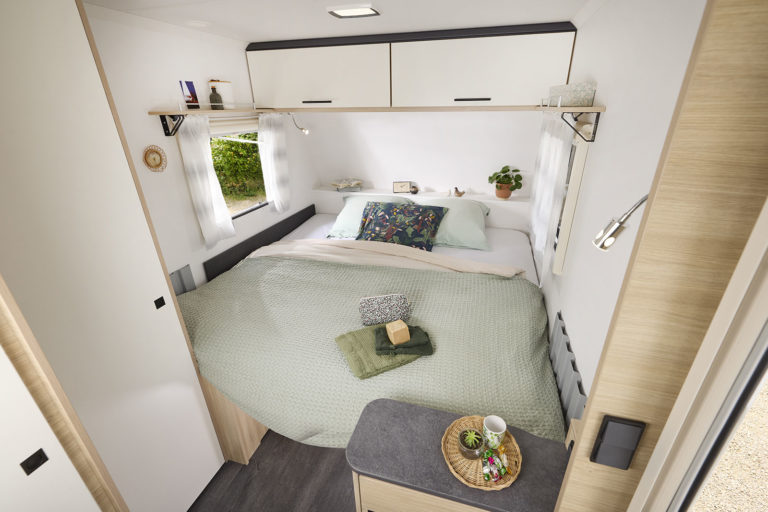

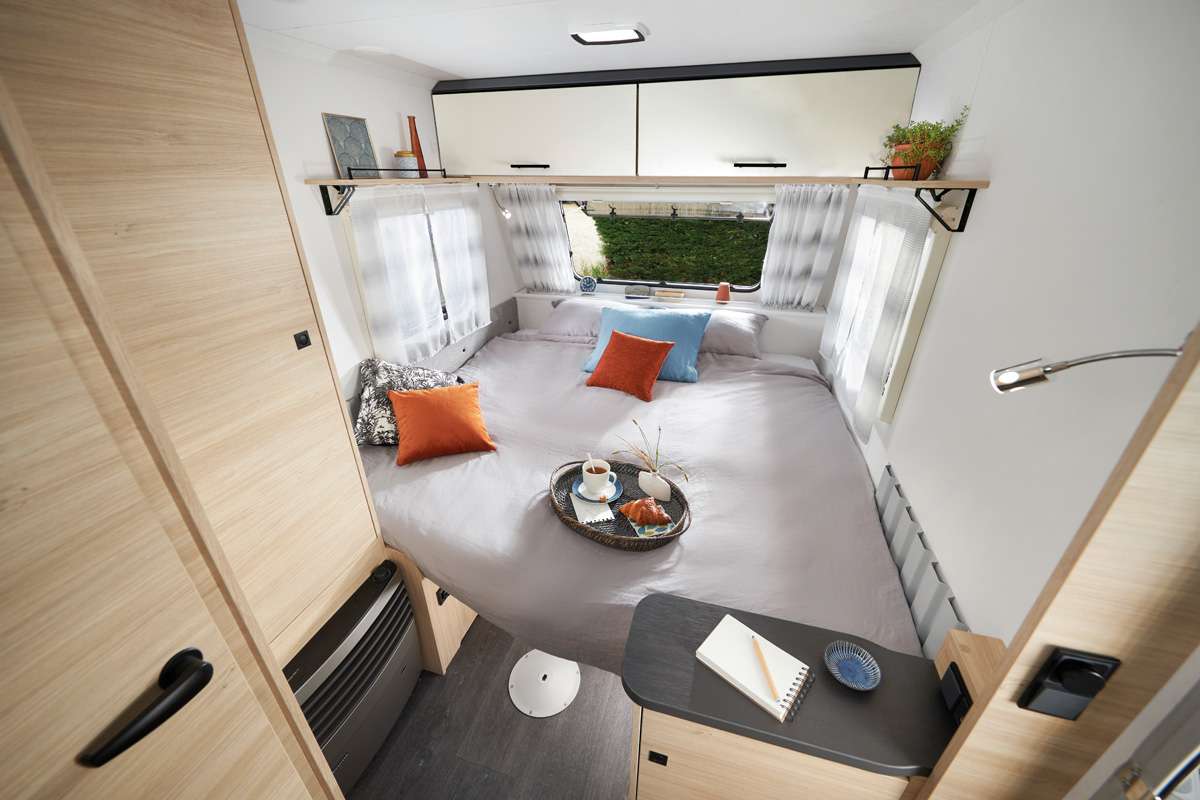

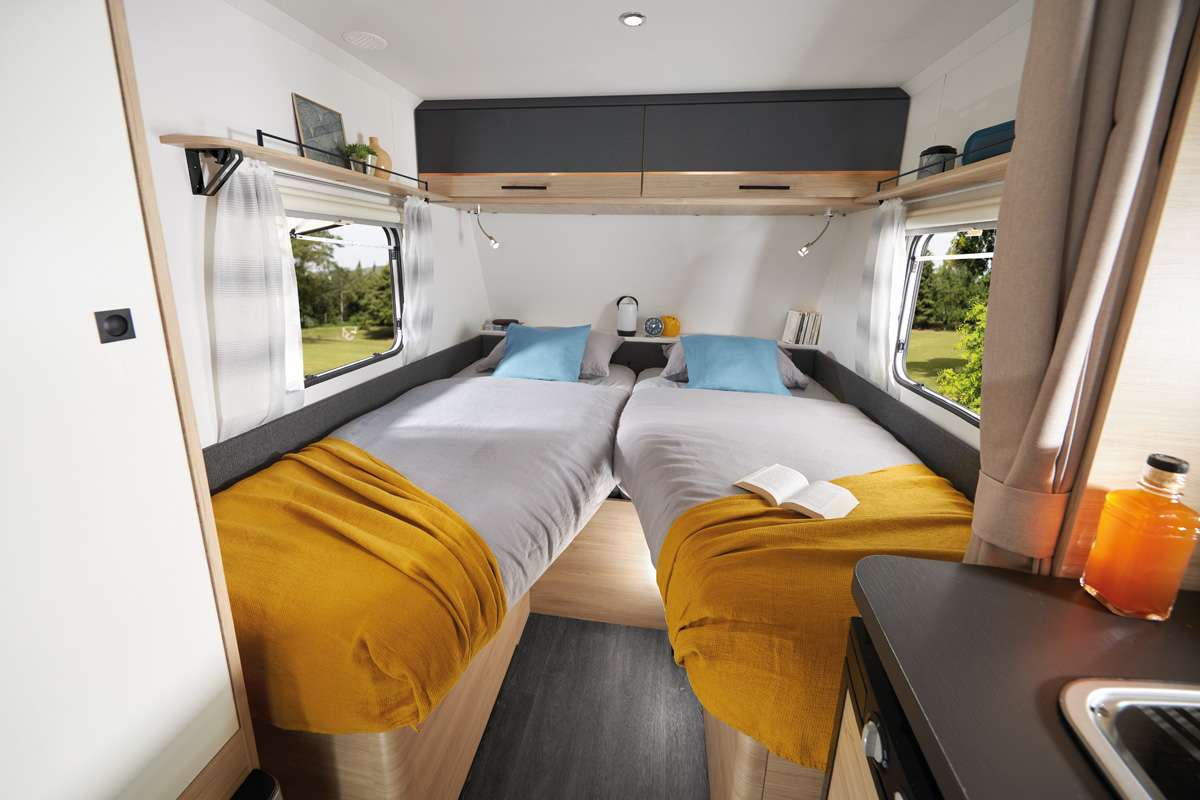

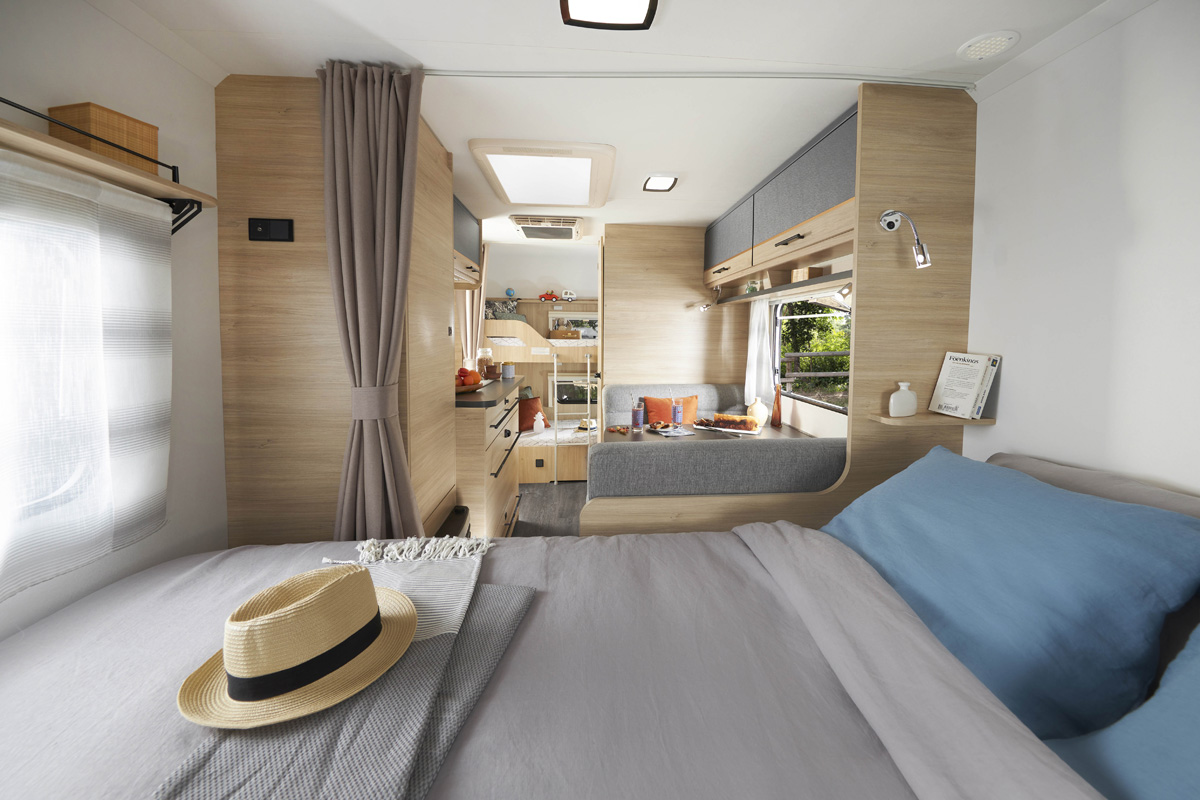

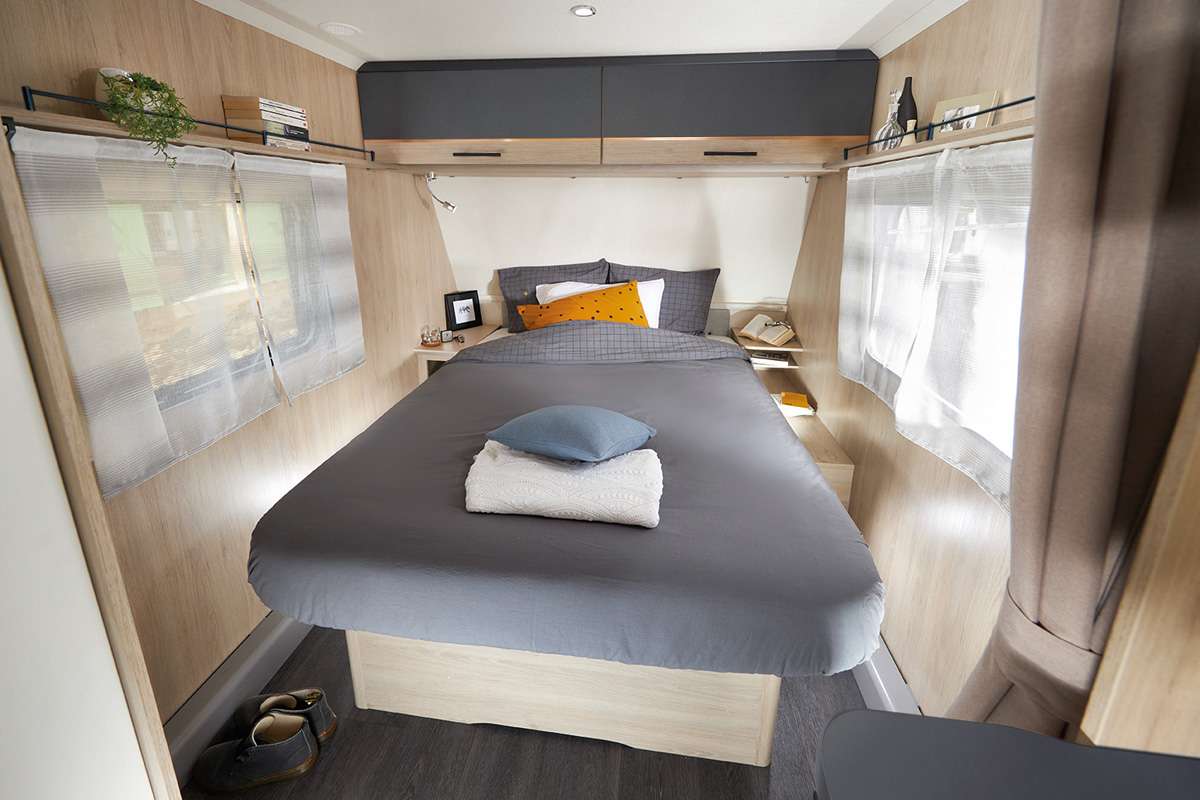

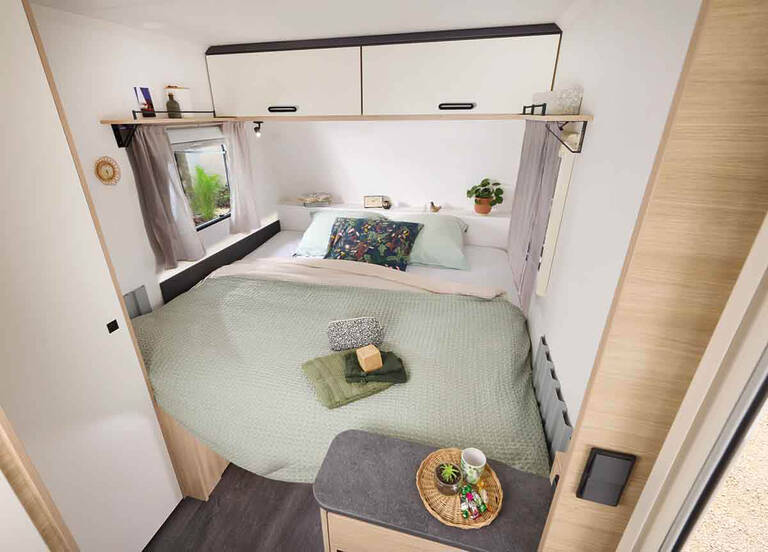

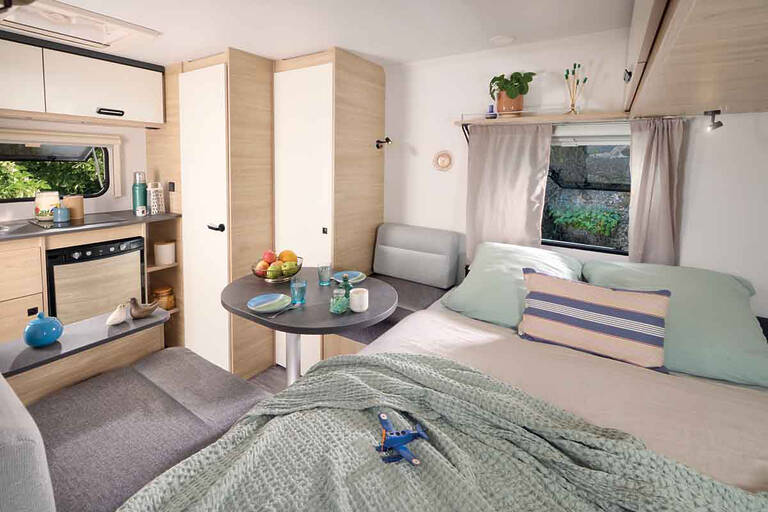

BEDROOM
-
Dimensions couchage avant (cm) : 140x195 or 195/205x195
-
Dimensions couchage central (cm) : 55\65x190
-
Comfort mattresses (12cm)
-
ELECTRICAL INSTALLATION
-
Transformer / charger module 230V/12V
including ground fault circuit breaker
-
Lichtdimmer plafonnière zitgroep
-
TV-preparation (socket and cable)
-
Sockets 230V : 3
-
PACK STYLE :
-
GRP Roof, Sides & Under-floor
- AKS 3004
- Shock-absorbers
- Luggage door (100x40cm)
- Boiler Trumatherme 5L/230V
- Flexible handshower
- Waste water tank 30L (wheeled) (5 kg.)
- Fresh water tank 50L
- Skylight 700*500
- Entrance door accessories

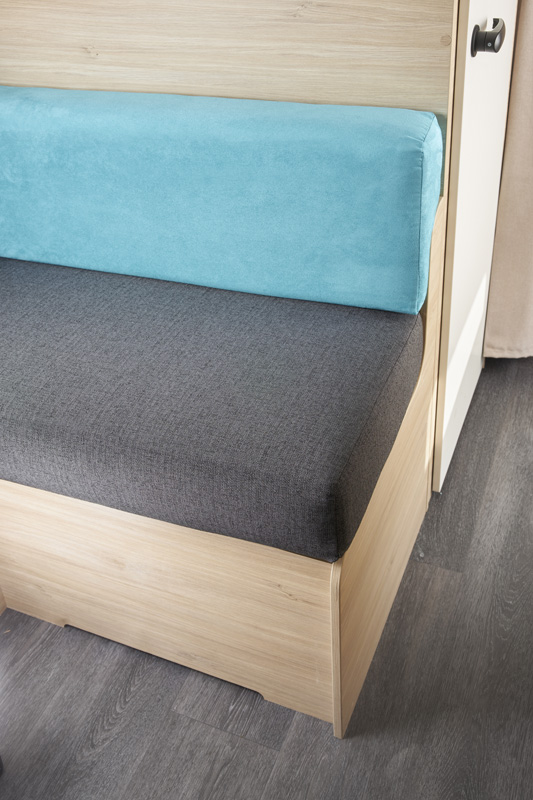

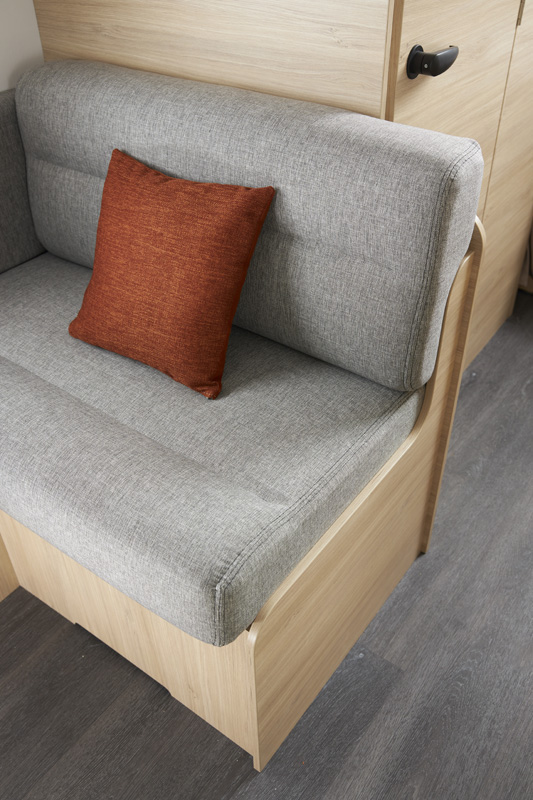

- Cushions "Sydney"
- Comfort matresse (15 cm) in parents bed
- Bi-color cupboards doors
- Backlit under cupboard storage
- LED lights
- Shower curtain
- Spare-wheel fixation in gas trunk (2 kg.)
-
pack travel :
-
Shock-absorbers
- AKS 3004
- Luggage door (75x30cm)
- Spare-wheel fixation in gas trunk (2 kg.)
- Fresh water tank 50L
- Waste water tank 30L (wheeled)
-
DOUCHE ALBA PACK :
-
Chauffe-eau Truma-therme 5L
- Flexible handshower
- Shower curtain
- Shower column & Flexible handshower
-
CHASSIS
-
Steel spare wheel (16 kg.)
-
Alloy wheels (16kg.)
-
Front window
-
EQUIPMENT
-
Skylight 700*500
-
Blown air Trumavent 12V
-
ULTRA HEAT
-
Mosquito-net entrance door
-
Factory fitted Air-conditioning (30kg.)
-
ELECTRICAL INSTALLATION
-
Leisure battery preparation
-
Electrical floor heating (5 kg)
